The Phoenix Concert Theatre is an 18,000 sq. ft. entertainment complex featuring three distinct environments.

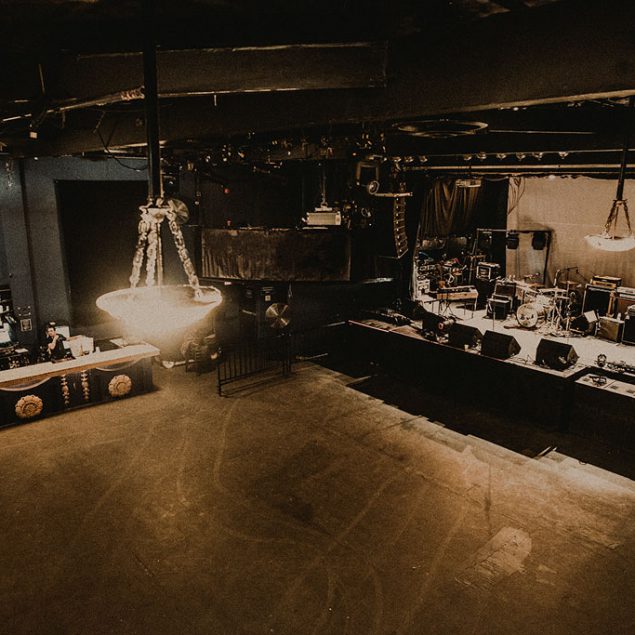

The Main Room

The Main Room features a leading edge sound and lighting system, five bars, a twenty five by twenty foot stage, full concert facilities and a 10ft. retractable projection screen.

50ft x 90ft

STAGE: 25ft wide x 20ft deep
Floor to deck of stage: 4ft
Clearance from deck of stage to lights: 13.5ft

Risers available upon request

FLOOR: 33ft x 45ft

The Balcony

The Balcony, a mezzanine space overlooking the Main Room, features lounge seating for 100 patrons, a VIP bar. Seating has unobstructed sight-lines to the stage.

The Parlour

The Parlour, a self contained space off the Main Room, features a separate sound system and lighting system.

24 ft x 135 ft

DJ BOOTH (PARLOUR)

  • 1 – Ashley Stereo Graphic EQ
  • 1 – Drawmer MX Stereo Compressor
  • 1 – Ecler Mac70i Mixing unit
  • 1 – DBX 2 Way Stereo X-over
  • 1 – Yamaha PC2002M Power Amplifier (Tops)
  • 1 – Ashly MFA8000 Power Amplifer (Subs)
  • 2 – Yamaha mid/high speakers
  • 4 – Yamaha subs
  • 10 – static LED lighting fixtures

Technical Specifications

Audio System

MAIN PA

16 – Adamson Spektrix Line Array Cabinets (8 per Side)

8 – DAE AR2020 Dual 20” Subwoofers (4 perSide, L/R or Sub on Aux)

2 – Lake LM26 System Processors (Not Located At FOH – CAT5 available)

12 – QSC RMX 2450 Power Amplifiers

2 – MC2 E100 4 Channel Power Amplifiers

2 – Aphex Dominators

P.A. system can be run in full range stereo or subs on Aux



FRONT OF HOUSE

1 – Avid SC48

1 – Clear-Com system

37 Channel Passive Split Snake plus one clear-com line, one talkback line and one return

1 – switched microphone



MONITOR SYSTEM

1 – Digico SD9 w/ 40 inputs, 16 outputs

7 – WNSS, WS 2×12 twin 12” monitors (active crossover)

1 – WNSS, WS 2×12 twin 12” listen wedge (active crossover)

1 – DAE VT118 1×18” subwoofer (drum fill)

1 – Crown MicroTech 2400 amp

10 – QSC Series 3 amps



STAGE EQUIPMENT

4 – Sennheiser 935 Vocal Microphones

8 – Shure SM-58 vocal microphones

5 – Shure SM-57 instrument microphones

1 – Shure Beta-57

1 – Shure Beta 91

1 – Shure Beta 52

4 – Sennheiser e904 instrument microphones

3 – Shure SM-94 condenser microphones

1 – Sennheiser MD421-U5 instrument microphone

1 – Apex C110 condenser microphone

2 – Sennheiser e614 condenser microphones

7 – Passive direct boxes



Power

150 Amp 3 phase camlock service at downstage right for lighting.

60 Amp 3 phase camlock service 50’run under downstage right for audio.

Shore power for buses is available in the loading dock laneway.




LIGHTING

FIXTURES

4 – Martin Mac 250 Krypton Moving Lights  (above audience)

4 – Martin Mac 250 Entours Moving Lights (above stage)

36 – Par 64 Fixtures on bars of 6 c/w soca multi-cables

3 – 4 Way Blinders (PAR 36-650watt 2×2)

2 – 19/26 degree Source 4 Lekos



CONSOLE

1 – MA2 on PC touchscreen (6 DMX universes)

1 – MA2 Command Wing

1 – MA2 Fader Wing



DIMMERS/HAZER

3 – LSC 12 Channel Dimmers (36K)

3 – XLR DMX Lines to FOH Mixing Position
1 – Ultratec (LeMaitre) Radiance Hazer





PARLOUR (front room)

1 – Ashley Stereo Graphic EQ

1 – Drawmer MX Stereo Compressor

1 – DBX 2 Way Stereo X-over

1 – Yamaha PC2002M Power Amplifier (Tops)

1 – Ashly MFA8000 Power Amplifer (Subs)

2 – Yamaha mid/hi speakers

4 – Yamaha subs

10 – static LED lighting fixtures

Over the past 20 years the Phoenix Concert Theatre has played host to thousands of live performances and a roster of artists and events.
